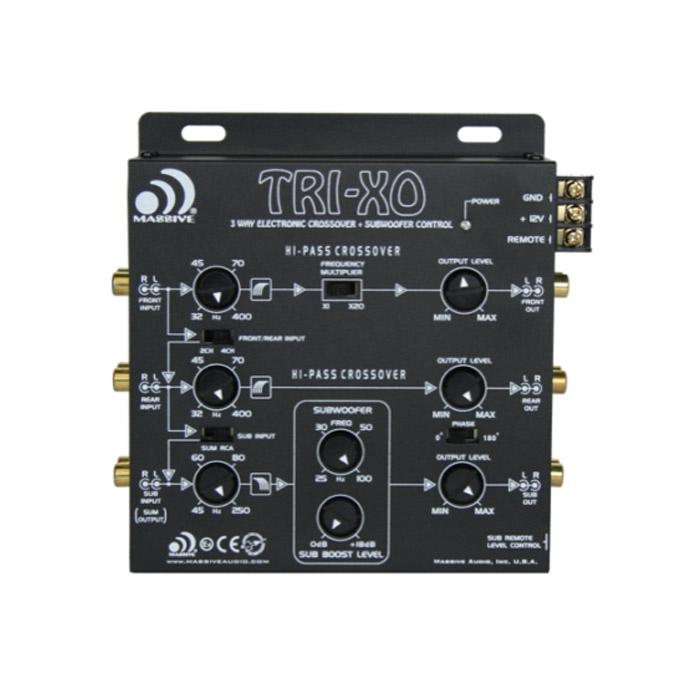

MASSIVE AUDIO TRI-XO – 3 way Electronic Crossover 18DB

Power Source: 14.4V DC Negative Ground Input Current: 0.5 amp Max Distortion: 0.01% THD at 1V Output Level Frequency Response: 10Hz-30kHz /- 3dB S/N Ratio >100dB Channel Separation: 60dB Crossover Slope Rate: 18dB per Octave 3rd Order Butterworth Input Impedance: 20K Ohms Output Impedance: 100 Ohms Output Gain: 1:2 ( 6dB) Output Voltage Level: 5V Max Dimensions: 5.98″ x 7.08″ x 1.69″ 3-Way Electronic Crossover with Sub Control Infinitely Adjustable Asymmetrical Crossovers 14.4 Volts DC negative ground power source 0.5 Amp Max Input Current 0.01% THD @ 1V Output Level 10Hz – 30KHz – 3dB 60dB Separation 10dB Per Octave 3rd Order Butterworth X-Over 20K Ohm Input Impedance 100 Ohm Output Impedance 1:2 ( 6dB) Output Gain Dims ~5.98” x 7.08” x 1.69” 5V Max Output Voltage Level 180◦ Phase Switch Under Dash Remote Included 50Hz up to 12dB
