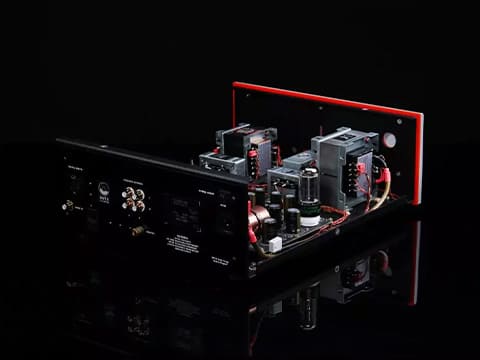

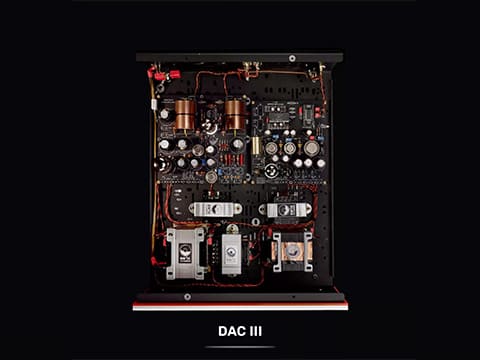

FEATURES: SW1X Audio Design™ DAC III Features: Pure NOS (Non-Oversampling, zero digital domain filtering) R2R design based on the TDA1541 DAC chip. Specially selected and harmonically matched components and materials throughout. Anode follower, zero negative feedback, single-ended, Class A, RC (resistive loaded, capacitive de-coupled) valve amplification topology. 6N6P double triode valve output stage. Valve rectified CLC (choke filtered) power supply: 6X5 indirectly heated or directly heated 5Y3 (SPX version). Dynamic Element Matching (DEM) of the TDA1541 powered by an asynchronous E180F valve clock with EAA91 valve rectified power supply. Active I/V conversion via a specially selected transistor (<10 Ohm input impedance) with the shortest signal path directly connected to the tube grid. Discrete transistor shunt voltage regulated power supplies for the TDA1541, SPDIF receiver, and active I/V conversion. Internally wired exclusively with SW1X Magnum, Genesis, and Opus conductors (single strand or Litz copper). M6 grain-oriented EI core mains transformers and chokes (SPX version). Black Gate de-coupling capacitors for TDA1541 DAC (SPX version). AN copper foil signal output de-coupling capacitors. AB 2W non-magnetic carbon film resistors (SPX version). TUBE COMPLEMENT (SPX VERSION) 1 × 5Y3 (rectifier) 1 × 6N6P (output) 1 × E180F (DEM valve clock) 1 × EAA91 (rectifier for DEM power supply) INPUTS AND OUTPUTS Supports up to 24Bit/96kHz digital coaxial S/PDIF input (USB input on VSB version). Single-ended RCA outputs (Balanced versions offer both true balanced and single-ended outputs). . LISTEN TO BELIEVE – We invite everyone to visit our shop! We strongly believe in personal experience, trying something out yourself than to take online reviews and word for it. . CHECK OUT OUR PRODUCTS IN OUR WEBSITE!!!: 1. Personal Website – www.sgliveacoustics.com 2. Youtube – https://www.youtube.com/@ListenToBelieve 3. Tiktok – https://www.tiktok.com/@sgliveacoustics 4. Instagram – https://www.instagram.com/sgliveacoustics/?hl=en 5. Facebook –https://www.facebook.com/sgliveacoustics 6. Lazada – https://www.lazada.sg/shop/sgliveacoustics/?path=index.htm 7. Carousell – https://www.carousell.sg/u/sgliveacoustics-aikhinfatt/ 8. Carousell – https://www.carousell.sg/u/sg_liveacoustics/
