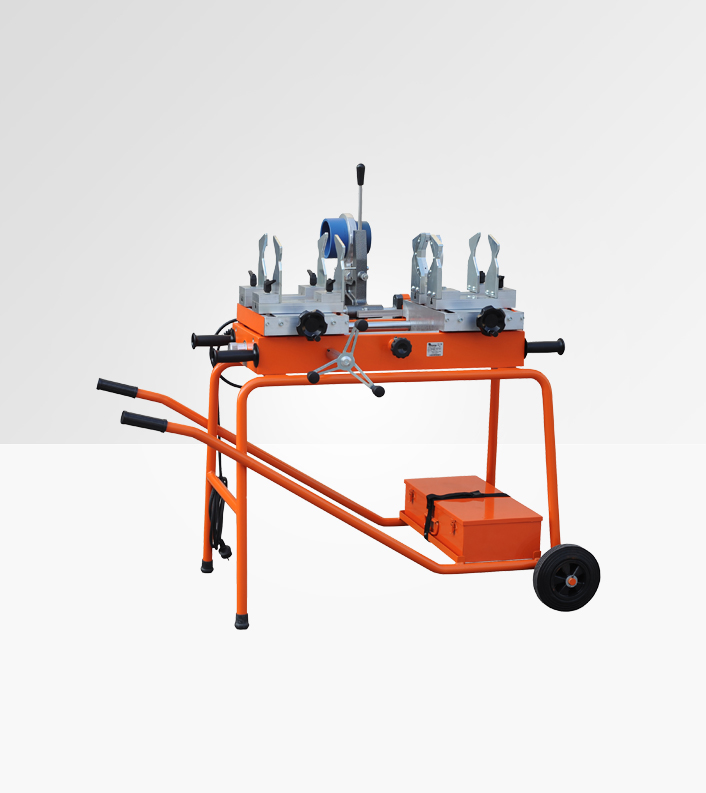

Description Socket Fusion Welding Machine – PRISMA 125 This welder is suitable for the socket fusion of pipes and fittings up to an OD of 125 mm (¾” to 4”). Available in either 110 or 230 volt, single phase. Total absorbed power of 1400 W. Specification – Working temperature of 180 – 280°C. Ambient temperature -5 – 40°C. Materials – HDPE, PP, PP-R, PVDF and PB. Dimensions – 1080 x 840 x 580mm. Weight 100kg. Comes complete with – machine body complete with an electronic socket welder, steel case complete with sockets and spigots from Ø 25 to Ø 125 mm and tool kit, pipe support tripod and sliding trolley. The welding machine is available in two versions, depending on the type of sockets & spigots supplied: PRISMA 125 type A and PRISMA 125 type B. Ideally suited to workshops and construction sites, the PRISMA 125 machine body features a selector for the welding depths of the different diameters, four self-centering steel clamps for locking pipes and fittings (different brands), a self-centring socket welder with electronic temperature control, a device for the maximum heating depth, a sliding trolley, a tripod to support the pipe, a set of sockets and spigots for socket fusion from Ø 25 to Ø 125 mm with steel case.
