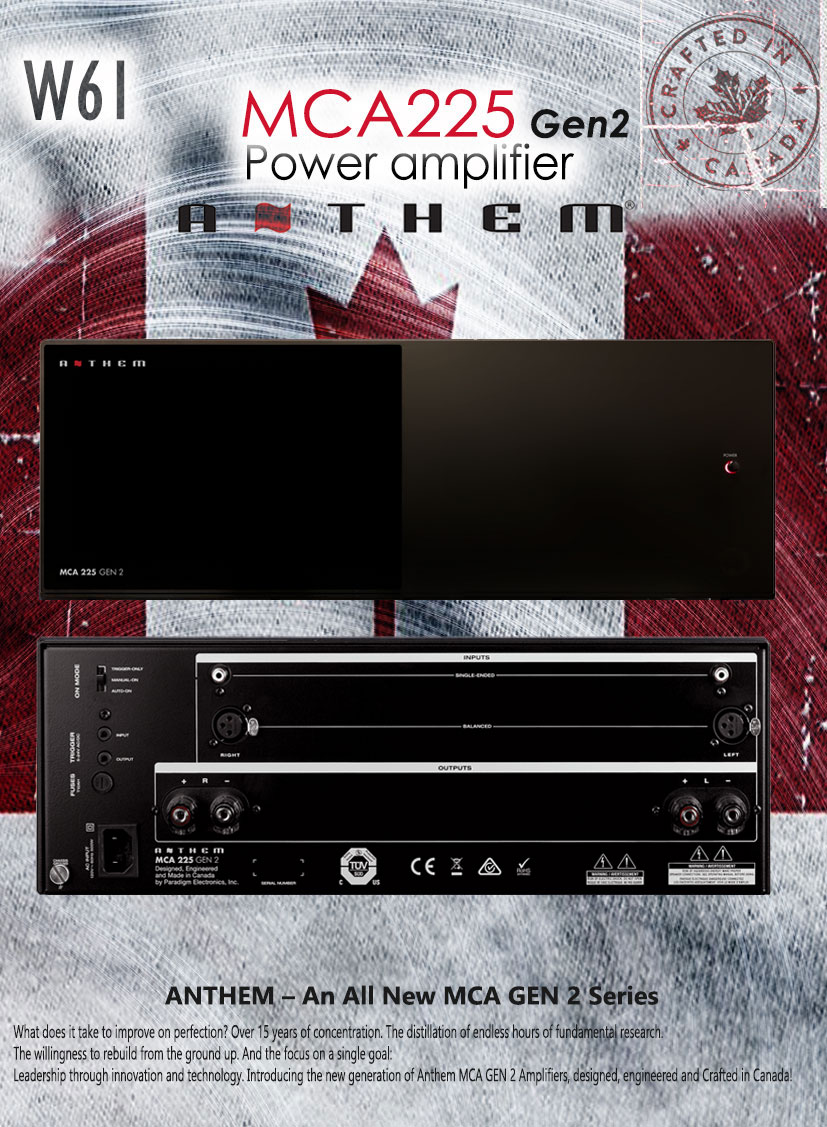

Anthem MCA225 GEN2

รายละเอียดสินค้า Anthem MCA Gen2 Specification The Generation 2 MCA 525, MCA 325 and MCA 225, designed and built in Canada,are like no other amplifiers in the world:custom low-noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators;oversized aluminum heatsinks; customdesigned dual binding posts; and patented auto-on/off circuitry.Superior craftsmanship that is reflected in clean,clear,audiophile-quality sound from top to bottom of the frequency spectrum. - Impedance: 8/4/2o – 225/400/600W- THD @100W: @1kHz/20kHz, 0.001%/0.015%- Freq Resp (20 Hz-kHz): 8/4O ±0.1dB, 2O - ±0.2dB- SNR, IEC, ref.225W: 120dB- Power Bandwidth, -3 dB @200W into 8O: 90kHz- Slew Rate: 30 V/μs- Channel Separation, 100 Hz to kHz: >65 dB- Input Impedance (RCA/XLR): 10kΩ / 15kΩ- Sensitivity: 225W into 8 ohms: 1.5 Vrms- Voltage Gain: 29 dB Relay Trigger (3.5mm Mono Jack)- In: Single-Ended Balanced- Out: Speaker Binding Posts IMD @100W: - ITU-R (19kHz 20kHz) – 0.0005%- SMPTE (60 Hz 7 kHz) – 0.002% Power Consumption: - Standby: 1.4 W- Idle: 47 W- Typical: 350 W- High Output: 750 W Power Requirements: - 120V: single phase AC, 108V, 132 @60Hz- 220-240V: single phase AC, 198V, 264V @50Hz General- Dimensions (HWD): 16.9 x 43.9 x 46cm- Height with Rackmount kit: 4U Power OutputContinuous 20 Hz to 20 kHz, <1% THD (all models)THD at 100 Wat 1 kHz …………………………………………………………..0.0010%at 20 kHz ………………………………………………………….0.015%IMD at 100 WITU-R (19 kHz 20 kHz)……………………………………………..0.0005%SMPTE (60 Hz 7 kHz) ……………………………………………..0.002%SNR, IEC-A, ref. 225 W………………………………………………120 dBFrequency Response, 20 Hz to 20 kHzopen circuit ……………………………………………………….± 0.1 dB8 Ω……………………………………………………………….± 0.1 dB4 Ω……………………………………………………………….± 0.1 dB2 Ω……………………………………………………………….± 0.2 dBPower Bandwidth, -3 dB at 200 W into 8 ohms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 kHzSlew Rate…………………………………………………………30 V/μsDamping Factor, 20 Hz to 1 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300Channel Separation, 100 Hz to 10 kHz……………………………….>65 dBInput ImpedanceRCA / XLR …………………………………………………………10 kΩ / 15 kΩInput Sensitivity, 225 W into 8 Ω…………………………………….1.5 VrmsVoltage Gain………………………………………………………29 dBconsumptionThis product operates from a single phase AC power source that supplies108V – 132V at a frequency of 60 Hz for the 120V version and 198V – 264Vat a frequency of 50/60 Hz for the 220V – 240V version.Dimensions (all models)Height ………………………………………………………….. 6-5/8” (16.9 cm)Rackmounted Height …………………………………………….. 4UWidth …………………………………………………………… 17-1/4” (43.8 cm)Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1/8” (46 cm)Weight (unpacked)MCA 525 (Gen. 2) …………………………………………………. 61 lb (27.5 kg)MCA 325 (Gen. 2) …………………………………………………. 43 lb (19.5 kg)MCA 225 (Gen. 2) …………………………………………………. 40 lb (18 kg)
