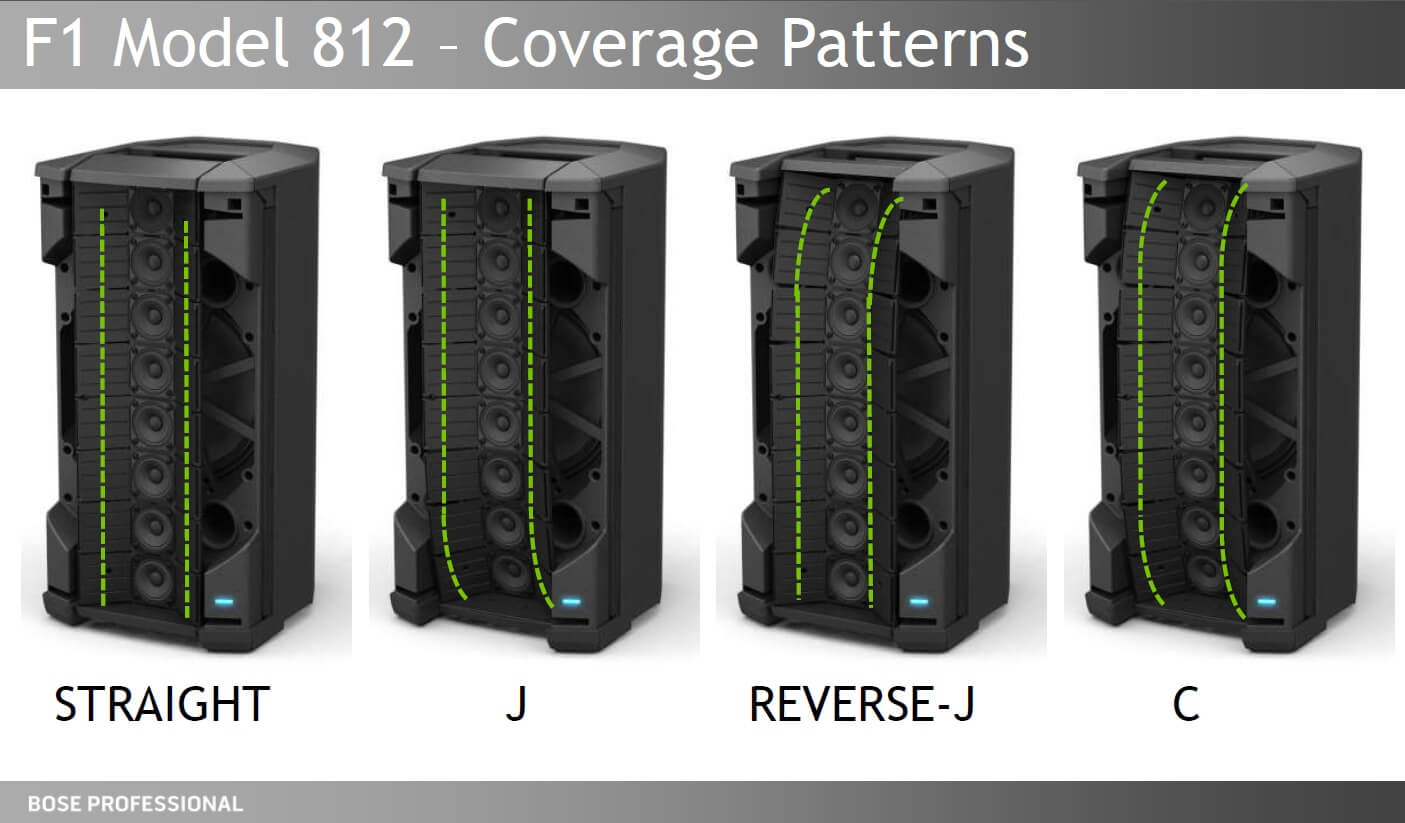

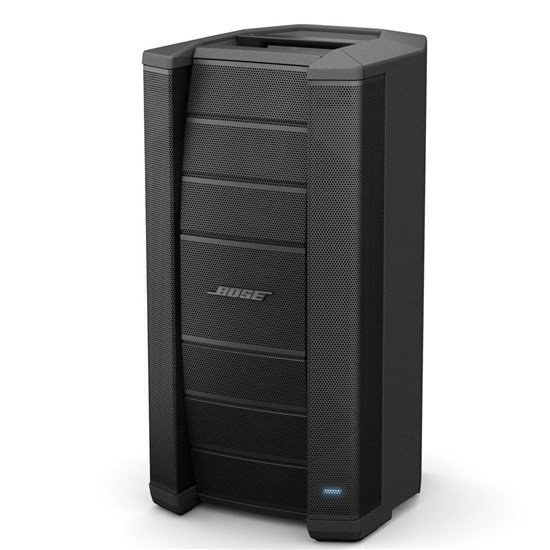

SKU: F1 MODEL 812 Categories: 'Pricespy, Audio, Bose Pro, Musician/DJ Equipment, PA Systems/ DJ Equipment, Speakers, Speakers Description Additional informationDescription The Bose® F1 Model 812 Flexible Array Loudspeaker is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply push or pull the array into position to create “Straight,” “C,” “J” or “Reverse J” coverage patterns. And once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So whether you’re playing at floor level, on a stage, or facing raked seats or bleachers, you can now adapt your PA to match the room. Vertically oriented 8-driver mid/high line array. 12-inch LF driver. 1000w rated power output.Technical SummaryFrequency Response (-3 dB)52 Hz – 15.5 kHzFrequency Range (-10 dB)43 Hz – 20 kHzNominal DispersionC: 100° H x 40° VMaximum SPL @ 1 m132 dB SPL (peak)Rated Power1,000 WKey FeaturesFlex array is a flexible baffle that can be configured into four unique shapes (“Straight,” “C,” “J” or “Reverse J”), allowing the customer to choose the best possible coverage pattern for the applicationVertically oriented 8-driver mid/high line array, with each driver mounted on a custom 100° waveguide, helps deliver wide, consistent coverage12-inch LF driver provides high performance at low frequency for strong low-frequency outputBi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver2 input channels with independent volume controls and Line Level/Mic switch on ChannelPhysicalEnclosure F1 Model 812: High impact composite materialsDimensions F1 Model 812 loudspeaker: 26.1″ H x 13.1″ W x 14.6″ D (664.66 x 334.3 x 372.5mm)F1 system stack: 73.5″ H x 16.1″ W x 17.6″ D (1868 x 410.16 x 448.5mm)Net Weight F1 Model 812 loudspeaker: 44.5 lbs (20.18 kg)F1 system stack: 101.5 lbs (46.0 kg)Colour BlackPackage Contents 1 F1 Model 8121 IEC Line Cord1 Owner’s GuideApplicationsLive music performancesBands of all stylesSolo musiciansMobile DJsHouses of worshipSchools and universitiesResorts and hospitality venuesBusiness presentationsInstruction ManualAdditional informationbrandBosemodel731419-5110
