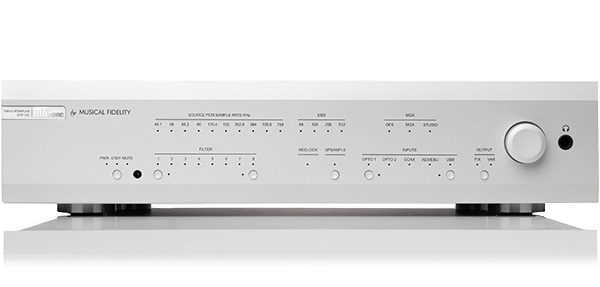

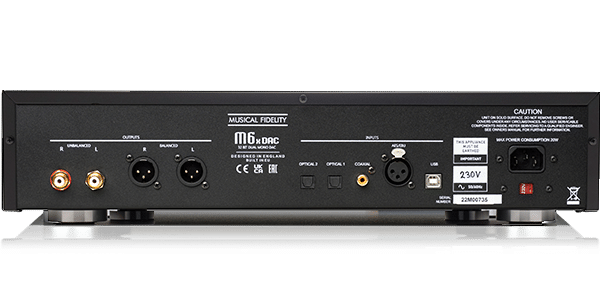

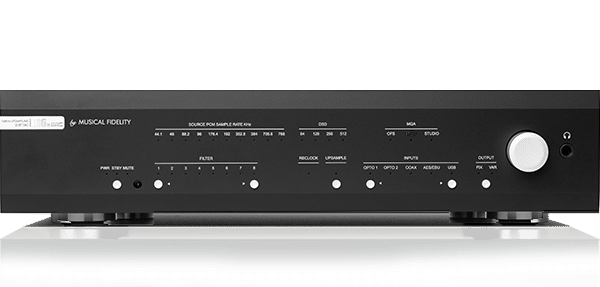

SKU: MFM6XDAC Categories: 'Pricespy, Audio, DAC Description Additional informationDescriptionMusical Fidelity M6x DACOverviewOur M6x DAC is a new milestone in the history of Musical Fidelity DACs. Its predecessor, the M6s DAC was one of the first to use the critically acclaimed ESS 32-bit HyperStream II DAC architecture. With the M6sR DAC, we continued to improve the firmware and added a few other quality of life improvements. DSD was now easier to use, we had full Roon Support and in- & outputs were updated to keep up with the fast moving digital audio landscape. And the other big thing: the M6sR DAC was now being made in the EU.M6x DAC In BriefDAC Circuit: 32 bit Hyper stream IIDAC Chip: 2x ES9038Q2M (dual differential)16-core XMOS and CPLD MAX II Altera processorsUSB: up to 32bit/768kHzUSB: DSD 256 (stereo DoP), DSD512 (stereo native)SPDIF: up to 24bit/192kHHzAdvanced Reclocking on all inputsSwitchable Upsampling with Oversampling BypassSuper Silent Power TransformerBalanced and RCA outputBuilt-in Headphone AmplifierFull Hardware MQA DecodingRoon TestedSpecificationsDACDAC Circuit: 32 bit Hyper stream IIDAC Chip: 2x ES9038Q2M (dual differential)Total correlated jitter: <12 picoseconds peak to peakLinearity: <0.4dB down to -130dBFrequency response: -0,1dB at 10Hz, 0dB at 1kHz, -0,4dB at 20kHzChannel separation: >130dB at 10kHz @ 0dBFSSignal to noise: >120dB “A”- wtd 1kHz @ 0dBFSTotal harmonic distortion: < 0,0005% at 1kHz @ 0dBFSDigital Inputs1x Coax, up to 24bit 192kHz (stereo PCM MQA)2x Optical, up to 24bit 192kHz (stereo PCM MQA)1x AES/EBU, up to 24bit 192kHz (stereo PCM MQA)1x USB Audio Class 2.0, ‘USB B’; up to 32 bit 768kHz (stereo PCM MQA), DSD 256 (stereo DoP), DSD512 (stereo native)Analogue Outputs1 pair line level RCA fix/var @ 2V RMS at 0dBFS1 pair line level XLR fix/var @ 4V RMS at 0dBFSOutput impedance: < 10 ohms1 Headphone out 6.3mm jack variableHeadphone AmpPower: 1.5W / channel into 32 ohmsOutput impedance: Min. recommended 16 ohms headphonesTHD: < 0,005% at 1kHz @ 0dBFSSignal/noise ratio: >115dB “A” wtdFrequency response: 0.1, -0.4dB 20Hz to 20kHzGeneral InformationDimensions (WxHxD): 440 x 100 x 390mmMain voltages: 230V/115V Internally set or 100V optionalMax. Consumption: 20W, <0.5W in standbyWeight: 6.9kg Additional informationbrandMusical Fidelitycolourblack, SilvermodelM6x DAC
