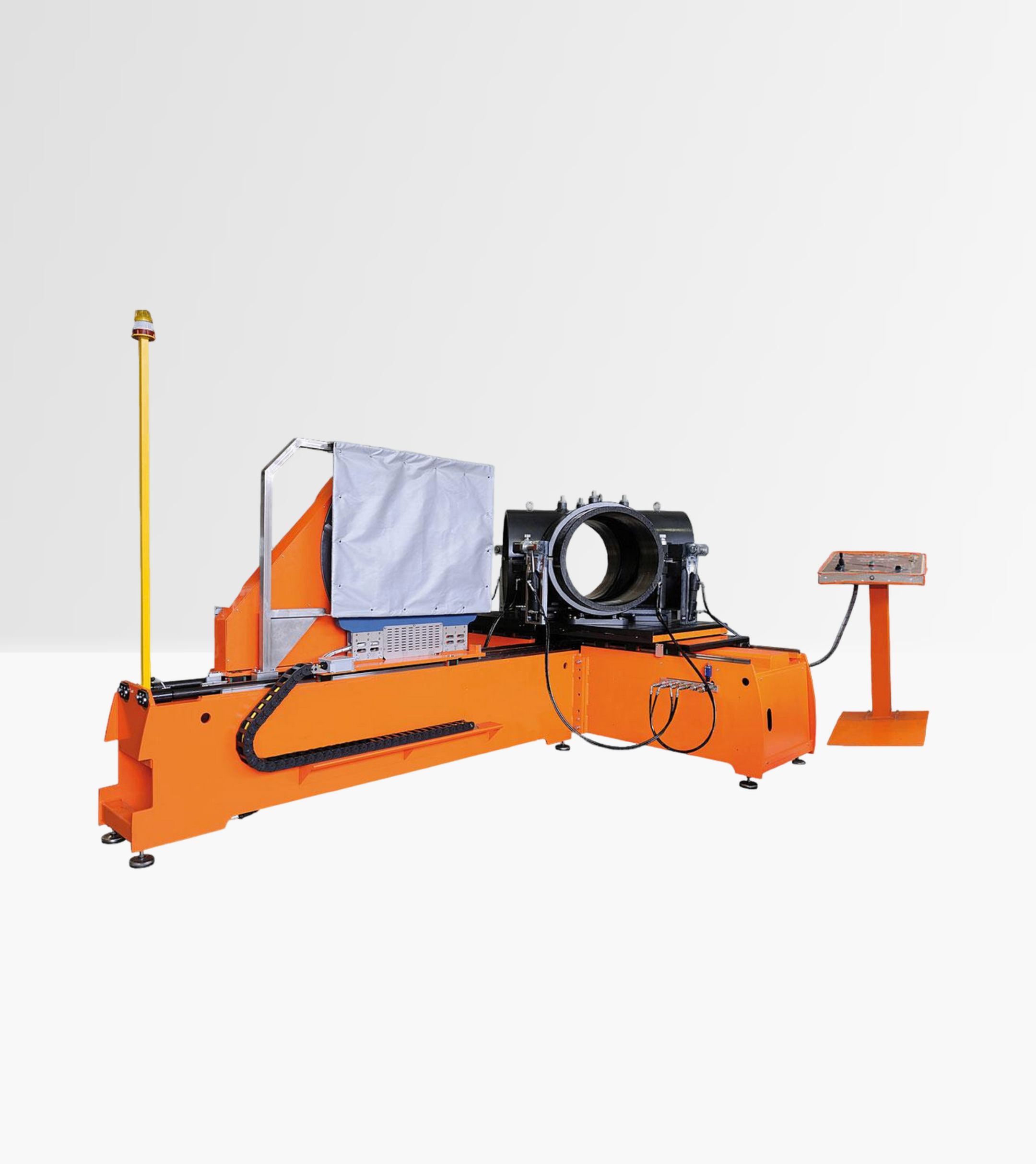

Description The ALFA 630 T is designed for fabricating fittings by joining pipe segments using special jaws. It welds elbows, tees, crosses, and wyes in sizes Ø 225–630 mm (8″ IPS – 24″ DIPS). All jaw operations—opening, closing, and blocking—are electro-hydraulically controlled. The machine can also weld special and molded fittings (e.g., elbows, tees, flange necks) using dedicated jaws. Main Features: Machine body with two hydraulically controlled carriages CNC control panel with data logging (up to 4000 cycles), 20 customizable presets, USB export, and PDF reporting Teflon-coated heating plate with motorized in/out movement on spherical bearing guides Motorized milling cutter on spherical bearing guides Upper cylinder for welding extra-thick pipes and high-pressure applications Standard Configuration: Machine body with CNC control panel Elbow jaws with inserts Ø 315–630 mm Heating plate Milling cutter Upper cylinder service tools Optional Accessories: Elbow jaw inserts Ø 225–280 mm Wyes, tees, crosses jaws with inserts Ø 225–630 mm Special right/left jaws (manual open) with inserts Ø 315–630 mm
